ELAC Carina Center Channel Speaker CC241.4

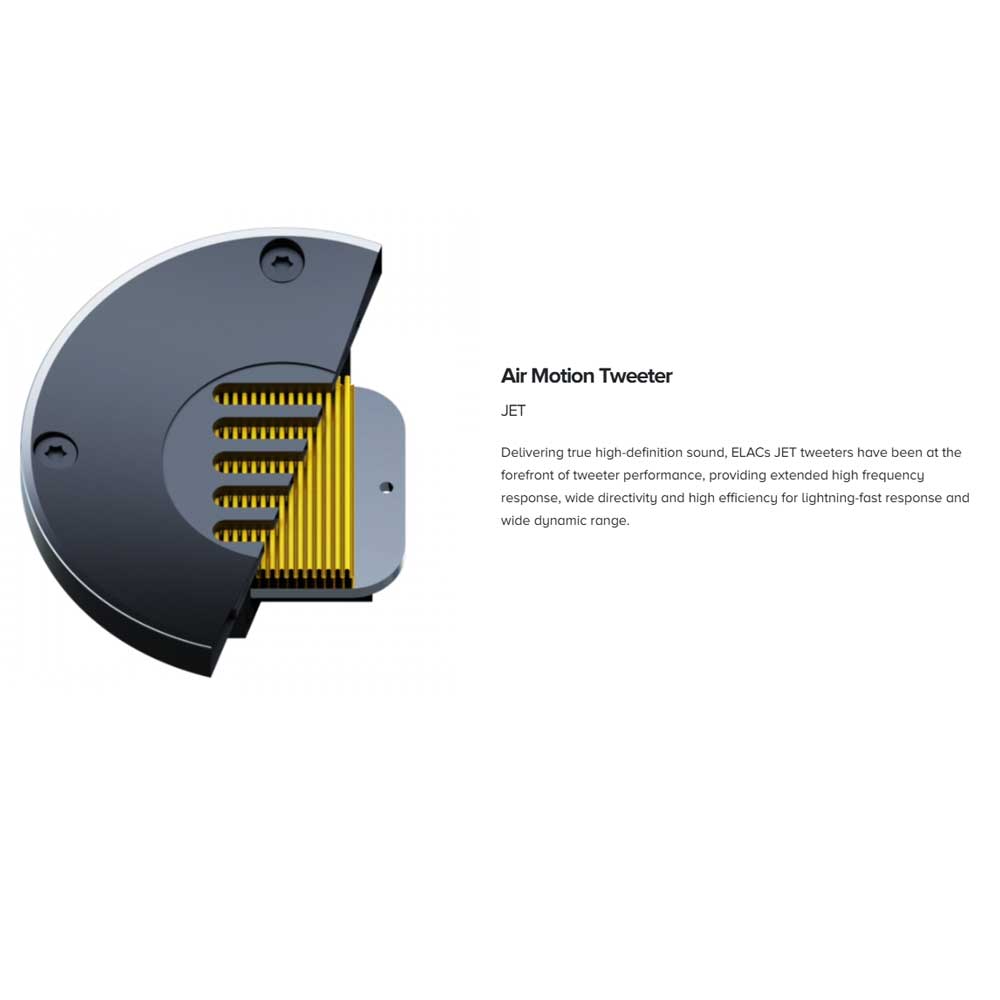

The ELAC Carina Center Channel Speaker CC241.4 and the JET Folded Air-Motion-Transformer. Delivering true high-definition sound, ELAC’s JET tweeters enthrall with its lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom and a wider frequency range. The ELAC JET tweeter is one of the most legendary tweeters in the industry and has won international praise with its transparent and effortless sound image.
With the fresh looks and fresh sound; the new Carina is destined to further enhance ELACs class leading reputation.
Download Specifications >> Owners Manual >>
Features

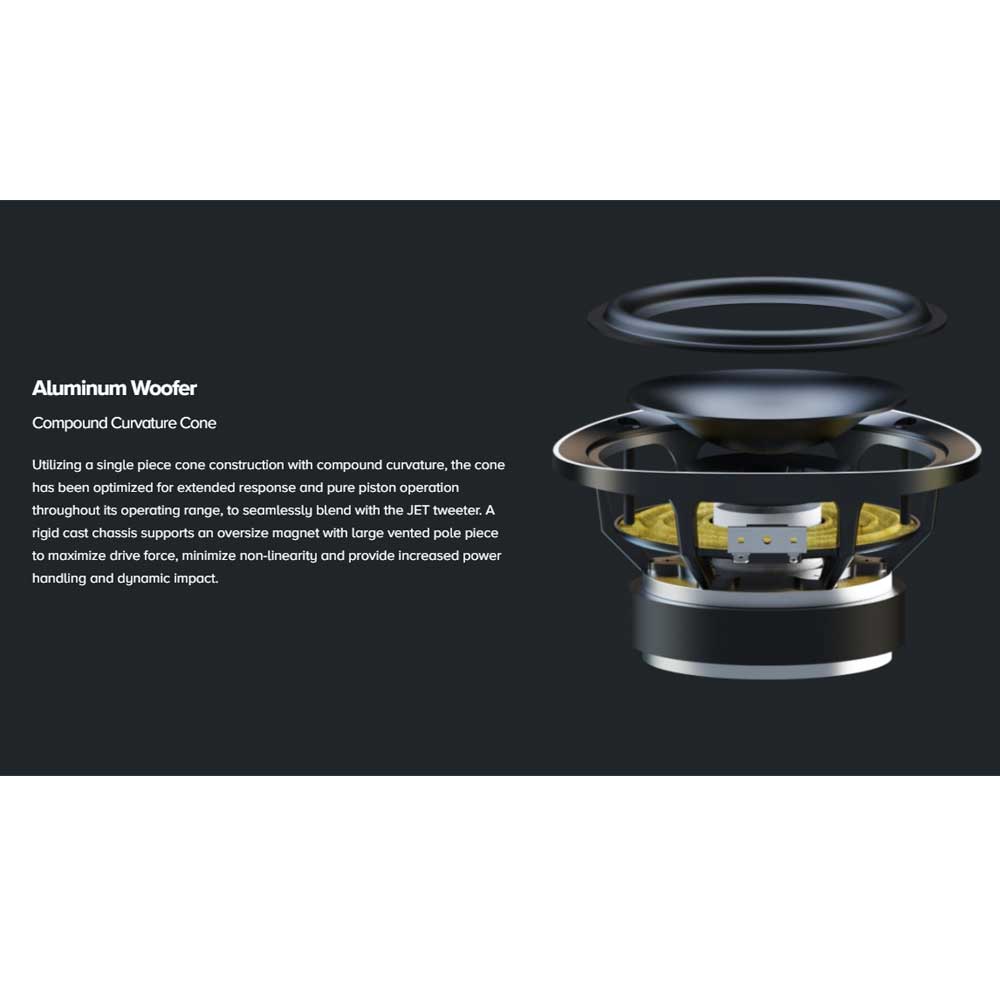

- Compound Curvature Aluminum Woofer – To match the capabilities of the JET tweeter and guarantee a seamless transition from the woofer to the JET tweeter, the compound curvature cone has been developed to control the cone breakup and move it well beyond the operating range of the woofer. A large diameter voice coil and over-sized vented pole piece magnet combine to give remarkable bass dynamics and a rich powerful performance.

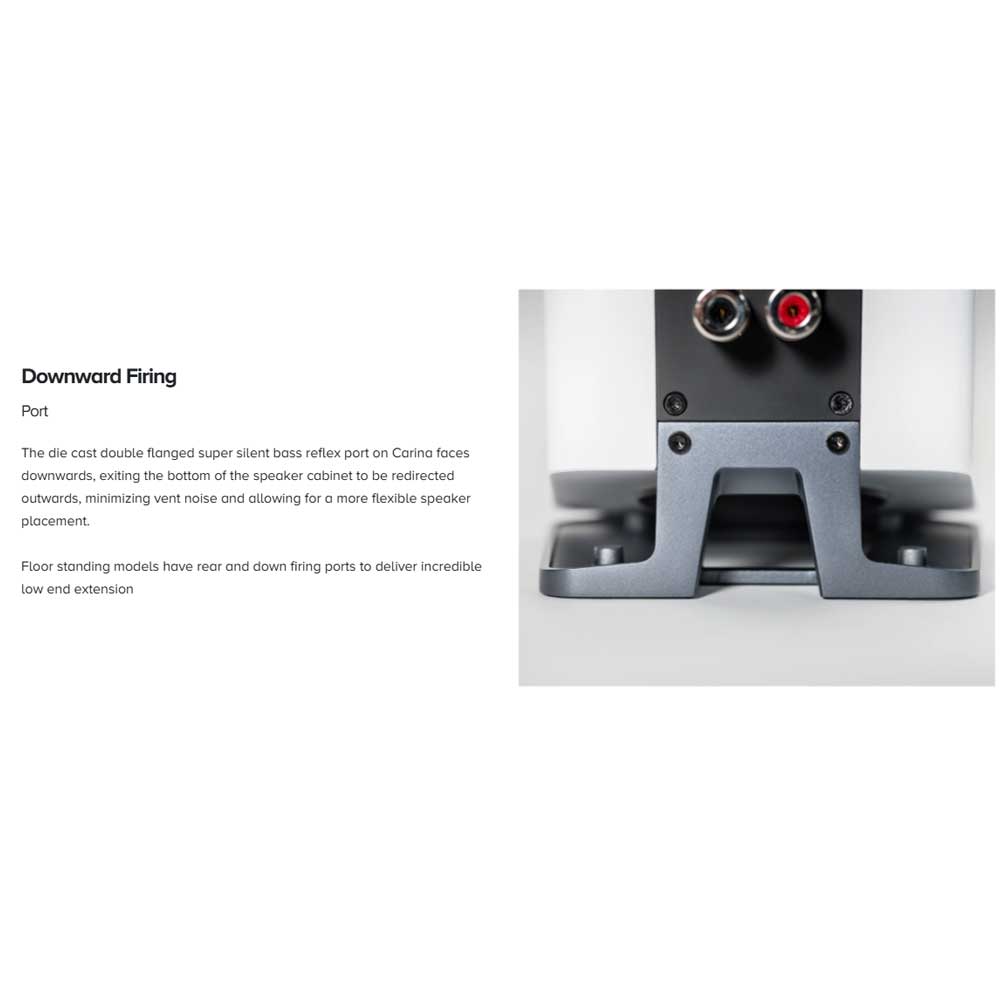

- Downward Firing Port – For a more flexible speaker placement and to minimize ventilation noise, the bass reflex port on the Carina series is directed to the floor, exiting the bottom of the speaker cabinet in a down-firing configuration.
Specifications
Type: 3-way Vented box
Woofer: 1 x Aluminum cone 5-1/4″
Midrange: 1 x Aluminum Cone 5-1/4″
Tweeter: JET folded ribbon
Crossover frequency: 100Hz / 3kHz
Frequency range (IEC 268-5): 50Hz – 30kHz
Sensitivity: 87dB/2.83V/1m
Recommended amplifier power: 30 to 200 wpc
Peak power handling: 120W
Nominal | Minimum impedance: 6 Ohm / 4.8 Ohm
Finishes: Satin Black, Satin White
Net Weight (each): 22.44 lbs
Dimensions (HxWxD): 08.34 x 24.41 x 7.79
