Description
Rotel CD11 MK2 CD Player
The Rotel CD11 MK2 CD Player seeks to enhance the performance of its predecessor while remaining faithful to Ken’s design philosophy and continue to proudly pay homage to Ishiwata san’s 40+ year legacy in the audio business.
The player’s heavy steel chassis supports a proprietary Rotel disc transport exclusively for the playback of compact discs. The CD11MKII’s smooth, tray-loading mechanism, precise laser pickup and silent running motor controller ensures seamless, worry-free playback of your CD collection.
Digital to Analog conversion is handled by a premium Texas Instruments PCM5102A 32-bit/384kHz DAC feeding custom-tuned digital low pass filter circuits. This sound-first design renders music on a large, open sound stage with both power and finesse.

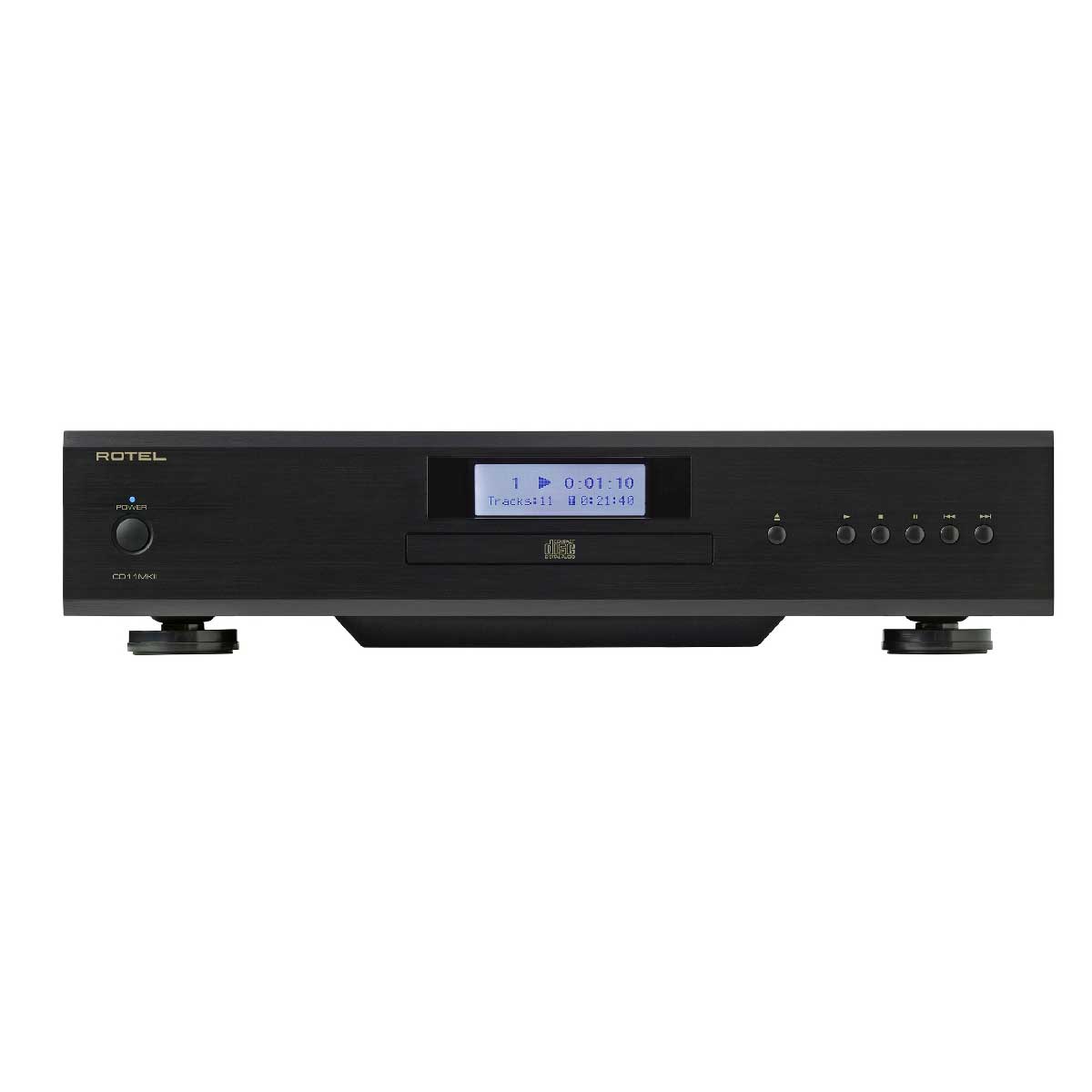

Intuitive CD control functions on the front panel and included remote control ensure simple operation. The front panel graphic display shows playback status and disc meta data information including the title and artist.
View Owners Manual >> View Specifications >> View Rotel Products >>
Features
- CD11 MKII applies decades of experience building CD players to an affordable player
- Built in Japan to the highest standards with the best in materials and design.
- Use the built-in DAC or use CD11 as a transport with the S/PDIF output.
- Smooth operation and the convenience of a remote control and 12V trigger input.
- Plays CDs and CD-Rs
- Texas Instruments 32-bit/384kHz digital-to-analog converter
- Total harmonic distortion: 0.009% @ 1kHz
- Frequency response: 20-20,000 Hz (±0.5dB)
- Signal-to-noise ratio: >125dB
- Stereo RCA analog output
- Coaxial digital output
- S-232 port for integration with third-party automation systems
The CD11MKII CD Player furthers Rotel’s 30+ year legacy of delivering high performance, high value CD players.
The player’s heavy steel chassis supports a proprietary Rotel disc transport exclusively for the playback of compact discs.
The CD11MKII’s smooth, tray-loading mechanism, precise laser pickup and silent running motor controller ensures seamless, worry-free playback of your CD collection. \
Digital to Analog conversion is handled by a premium Texas Instruments PCM5102A 32-bit/384kHz DAC feeding custom-tuned digital low pass filter circuits. This sound-first design renders music on a large, open sound stage with exceptional details, precision, and finesse.
A linear power supply provides isolated outputs to the CD motor control circuit and critical audio circuits reducing noise and distortion presenting even the smallest of details from your CD collection. Intuitive CD control functions on the front panel and included remote control ensure simple operation. The front panel graphic display shows playback status and disc meta data information including the title and artist.

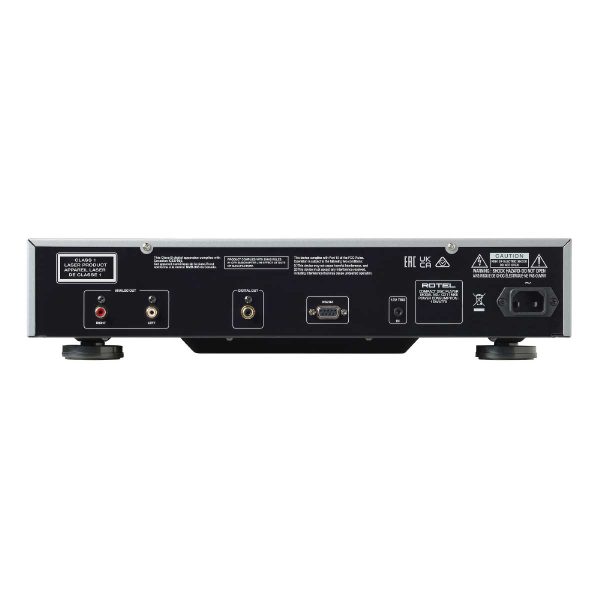

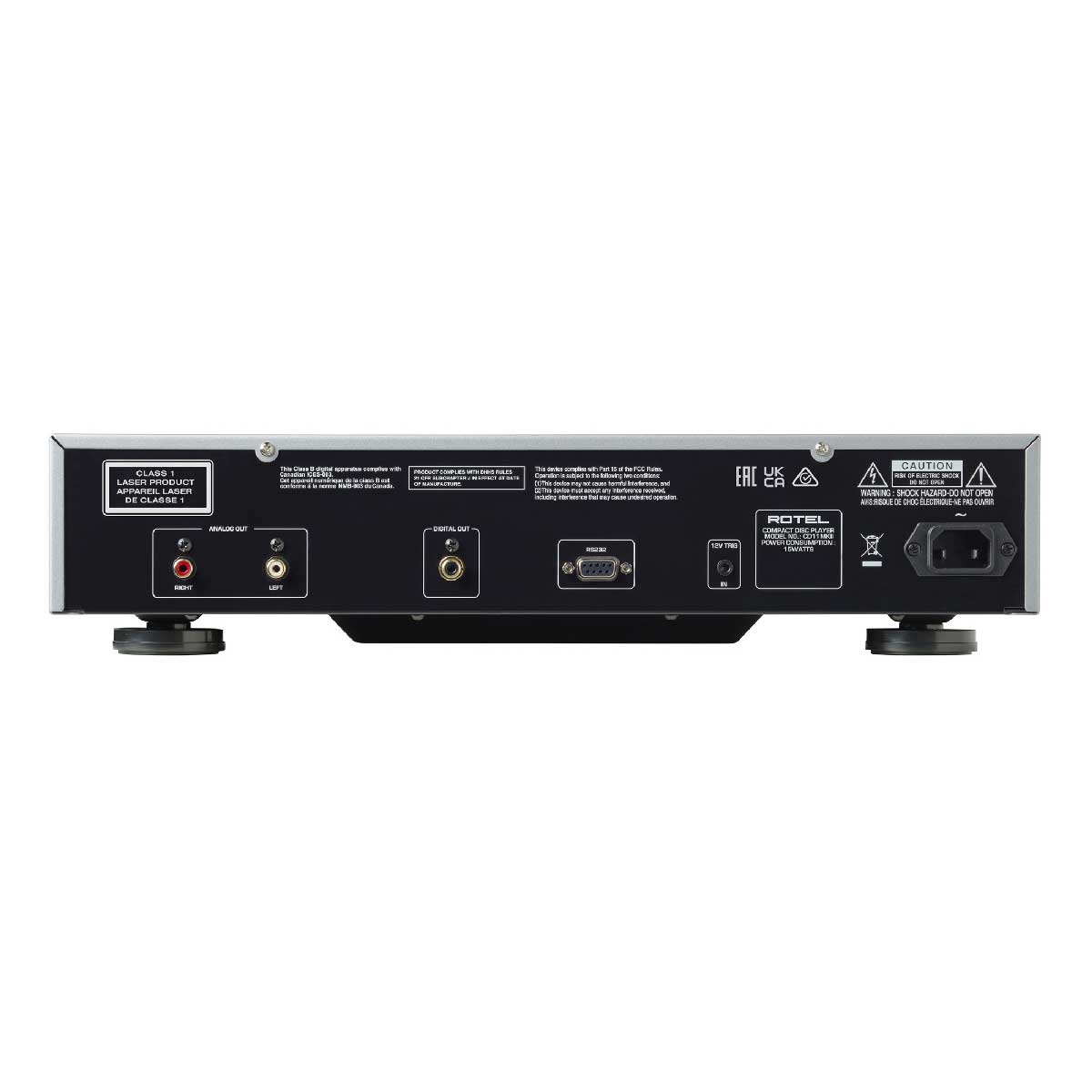

The digital coaxial output allows the CD11MKII to be utilized as a Disc Transport. A rear panel 12V trigger input and RS232 connector allows seamless integration into even the most complex systems.
Specifications
- Dimensions (W × H × D) 430 × 98 × 314 mm
- Front Panel Height 80 mm (3.15″)
- Power Requirements 230 V, 50 Hz
- Power Consumption 15 W
- Standby Power Consumption <0.5 W
- Net Weight 2 kg (13.7 lbs.)
- BTU Rating 40 BTU/h
- Total Harmonic Distortion + Noise 009% @ 1k Hz
- Frequency Response 20 Hz – 20k Hz, ±0.5 dB
- S/N Ratio (IHF “A” Weighted) >125 dB
- Dynamic Range >99 dB
- Digital to Analog Converters Texas Instruments PCM5102A 32-bit/384k Hz
- Channel Balance ±0.5 dB
- Channel Separation >115 dB @ 10k Hz
