Description
TRIANGLE AIO 3 Wi-Fi & Bluetooth Speaker

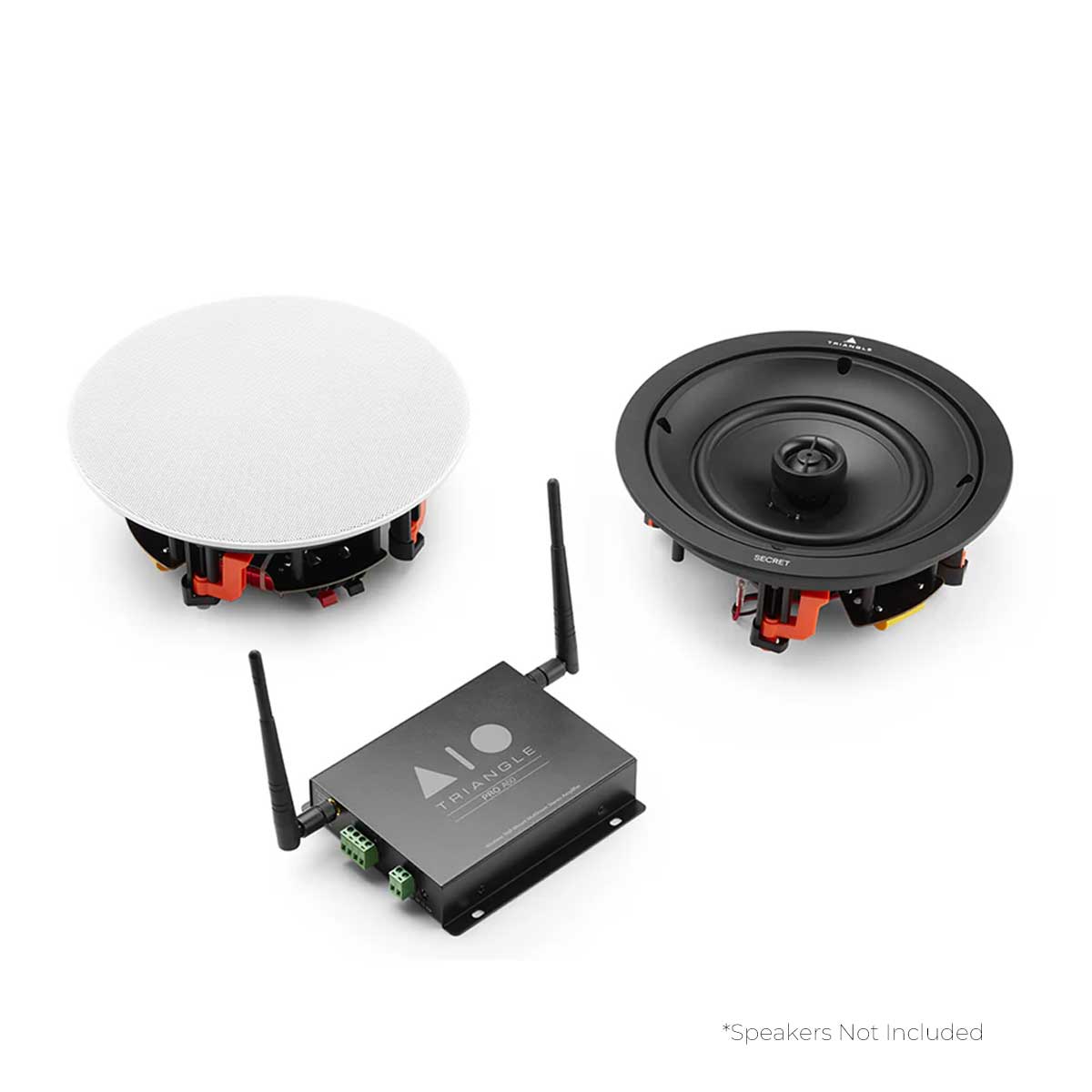

The TRIANGLE AIO PRO A50 Wi-Fi & Bluetooth Amplifier features a 2 x 50 watt Class D amplifier. It integrates all AIO technologies allowing you to stream your music wirelessly to create a multiroom environment. You can create up to 12 zones * with all AIO compatible products.
The AIO Pro A50 is the ideal solution to easily install an invisible and ultra-connected music system at home or at small businesses such as cafes / bars / restaurants etc.
Mounted on the wall or in a suspended ceiling, you can control the amplifier with the TRIANGLE AIO application, via Bluetooth, via the supplied remote control or via an RS232 compatible control system.
View User Manual >> View TRIANGLE Products >>
Features
A complete solution for your home
The AIO Pro A50 expands the AIO range to offer a complete environment meeting all existing needs. Whether you are using custom install speakers, a traditional hi-fi system or the AIO3 all-in-one speaker, control all your music devices with a single dedicated app.
- WIFI & MULTIROOM – Stream high resolution files all around your house controlled by one app with multiroom capability.
- BLUETOOTH – The universal wireless function is compatible with most devices on the market.
- DLNA – Stream all your local files store in your phone or in your server thanks DLNA technology.
- INTERNET RADIO – Listen to thousands of radio stations from all over the world.
- OPTICAL – Enjoy Movies and TV shows by connecting your television through optical output.
VERSATILE
The AIO Pro A50 offers you great versatility and a wide range of connections. In addition to the TRIANGLE AIO Multiroom Wi-Fi technology, the amplifier incorporates:
- A Bluetooth Aptx receiver
- An optical input
- A 1/8-inch (3.5mm) Jack input
- A USB-A port to connect a USB key
The device is provided with a remote control and a remote IR receiver to be positioned anywhere in the room to ensure a perfect signal transmission. You can set up six favourites on the remote control to access your preferred radio or playlist directly.
THOUGHT FOR INTEGRATION
A solution for professionals. With its shape and features, the AIO Pro A50 amplifier is designed for both individuals carrying out their home automation integration and professionals.
Two Phoenix-type terminals —one for the speakers, one for the power supply— enable you to connect and secure the cables. It is recommended to use the power supply terminal for set-ups requiring long cable lengths. A cord is also provided with the transformer for more conventional set-ups.
A screw to limit the volume is also provided to protect the amplifier from any risk of overheating or clipping that could damage the device, which is very important when the unit is difficult to access.
Finally, the amp can be positioned easily in a rack or screwed directly to a panel thanks to its side wings.
Specifications
Amplifier and Connectors
- Power : 2 x 50 Watts RMS Class D
Inputs :
- Wi-Fi
- Bluetooth
- Mini-Jack 3.5mm
- Optical
- Coaxial
- USB-A
Wireless Protocol
- Bluetooth 4.0, aptX, SBC, AAC
- Wi-Fi IEEE 802.11 b/g/n Standard 2.4GHz
- RJ45 10/100M LAN
Wireless & Multiroom Technologies
- Compatible with Airplay and Spotify Connect
- TRIANGLE AIO Application available for iOS and Android devices
- Multiroom up to 5 products with Wi-Fi and up to 10 with RJ45 (Ethernet)*
- Compatible UPNP / DLNA
- Webradio (TuneIn)
Streaming services:
- Spotify, Deezer, Tidal, Qobuz, Amazon music
Other feature
- Automatic Standby
*Multiroom technology is based on Linkplay technology. You can combine AIO 3, AIO Twin, AIO C, AIO pro A50 products and any other product using Linkplay (Ex: Advance Paris) in the same network.
Audio Sampling and Audio Formats
Sampling
- WI-FI : 24 bits / 192 kHz
- BLUETOOTH : 16 bits / 44 kHz
- OPTICAL : 24 bits / 192 kHz
Audio Formats
- APE
- FLAC
- WAV
- Apple Lossless (ALAC)
- AAC, AAC-LC, HE- AAC, HE-AAC v2
- MP3
- CBR/VBR
Weight & Dimensions
- Dimensions (W x H x D): 134 x 146 x 31 mm
- Box dimensions (W x H x D): 345 x 240 x 75 mm
- Net weight: 0,520 kg
- Gross weight: 1 kg
Accessories
- 1 x Wi-Fi Antenna
- 1 x Bluetooth Antenna
- 1 x IR Extension Cable
- 1 x IR Remote Control
- 1 x Jack 3.5mm Cable
