Description
FEATURES
- Designed for custom integration of a MusicCast multi-room audio system connected via Ethernet LAN in a rack or cabinet
- Streams four zones of audio per unit, expandable to 32 zones with simultaneous playback in linked groups of up to 20 zones each
- Eight channels of audiophile-grade Class D amplification assignable to any zone, bridgeable and 4-ohm capable, featuring a unique ground loop/hum-free circuit design
- Built-in Pandora®, Spotify Connect, SiriusXM Internet Radio, TIDAL, Deezer, Napster and more, plus access to music libraries and linked external sources
- Easy control via a free MusicCast app and 3rd-party control systems

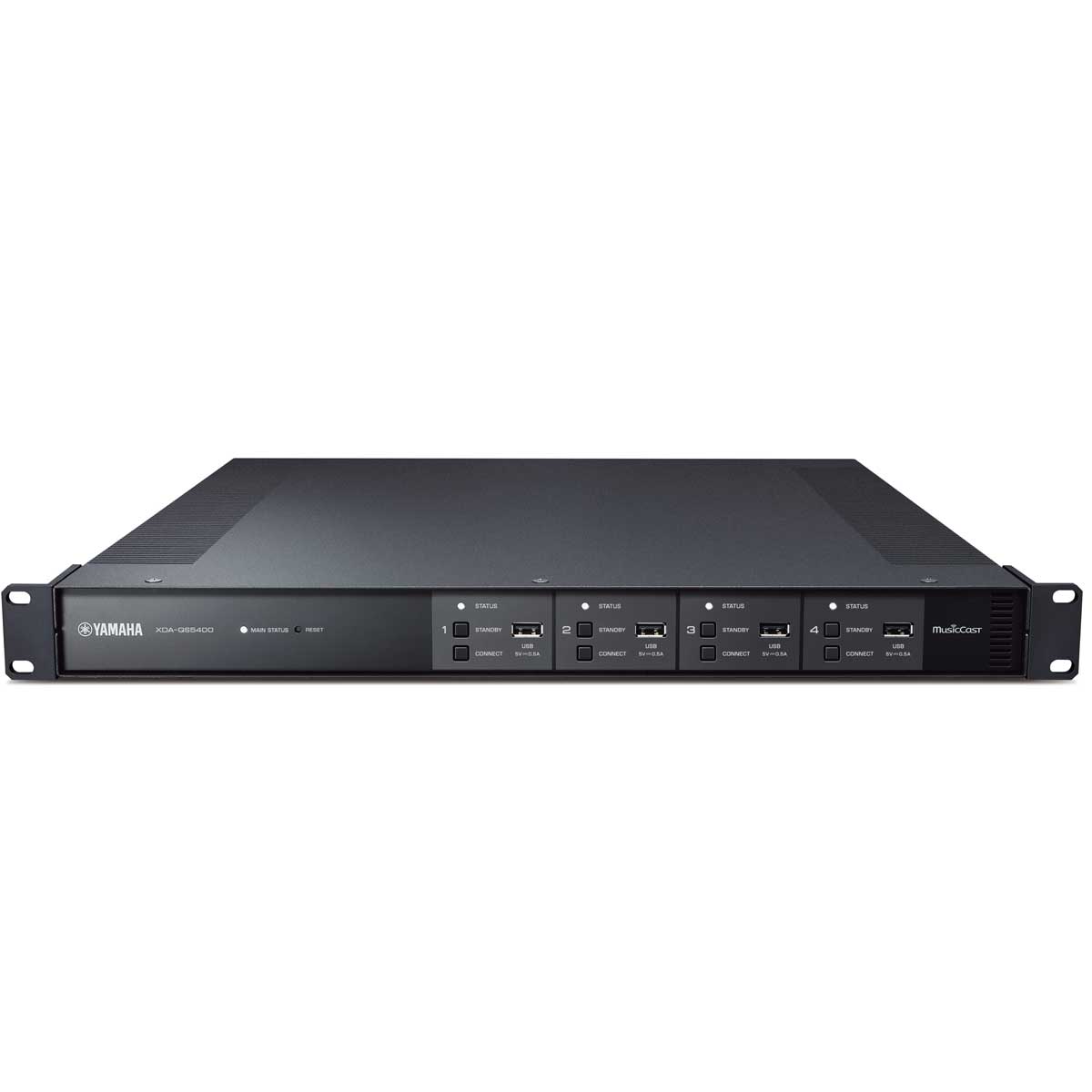

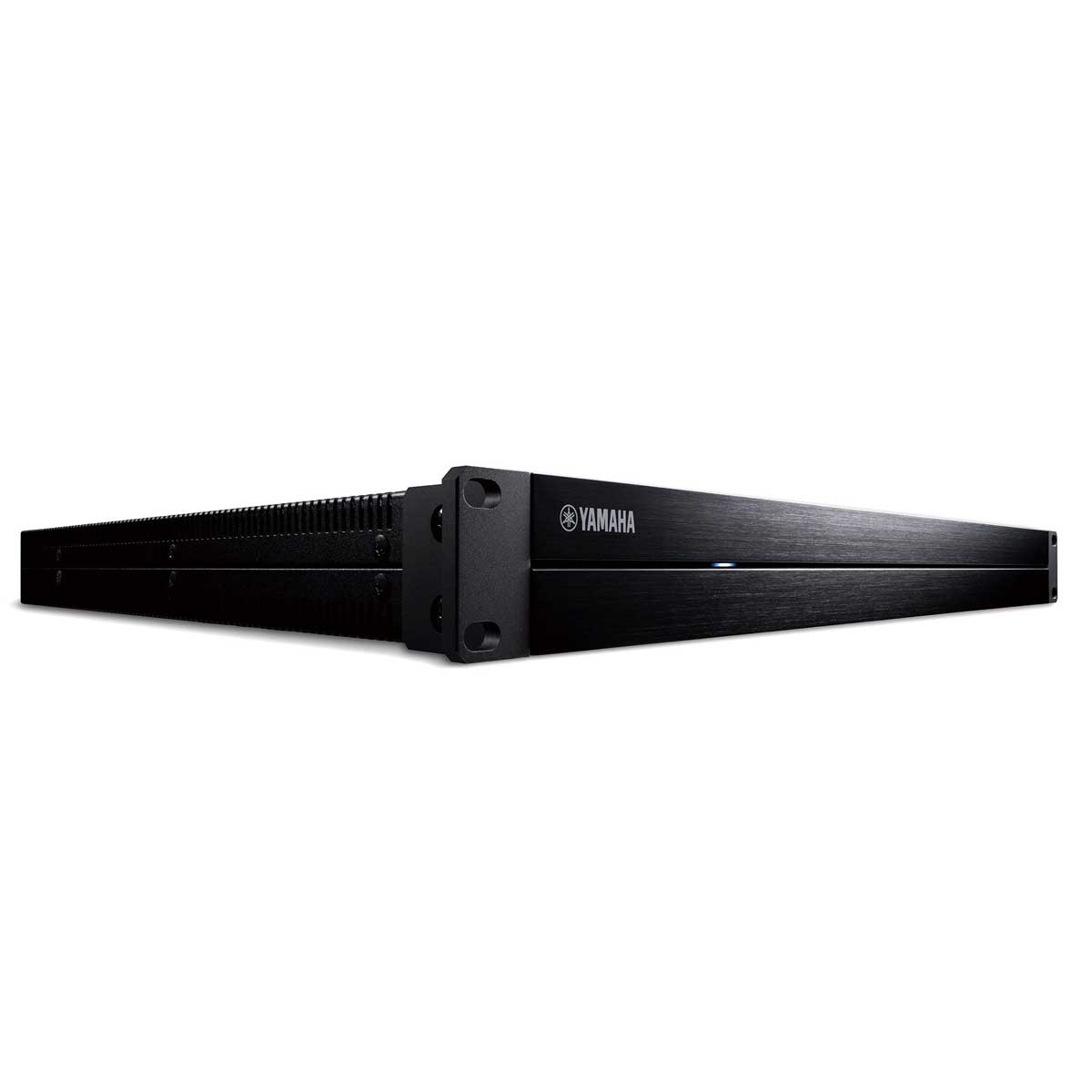

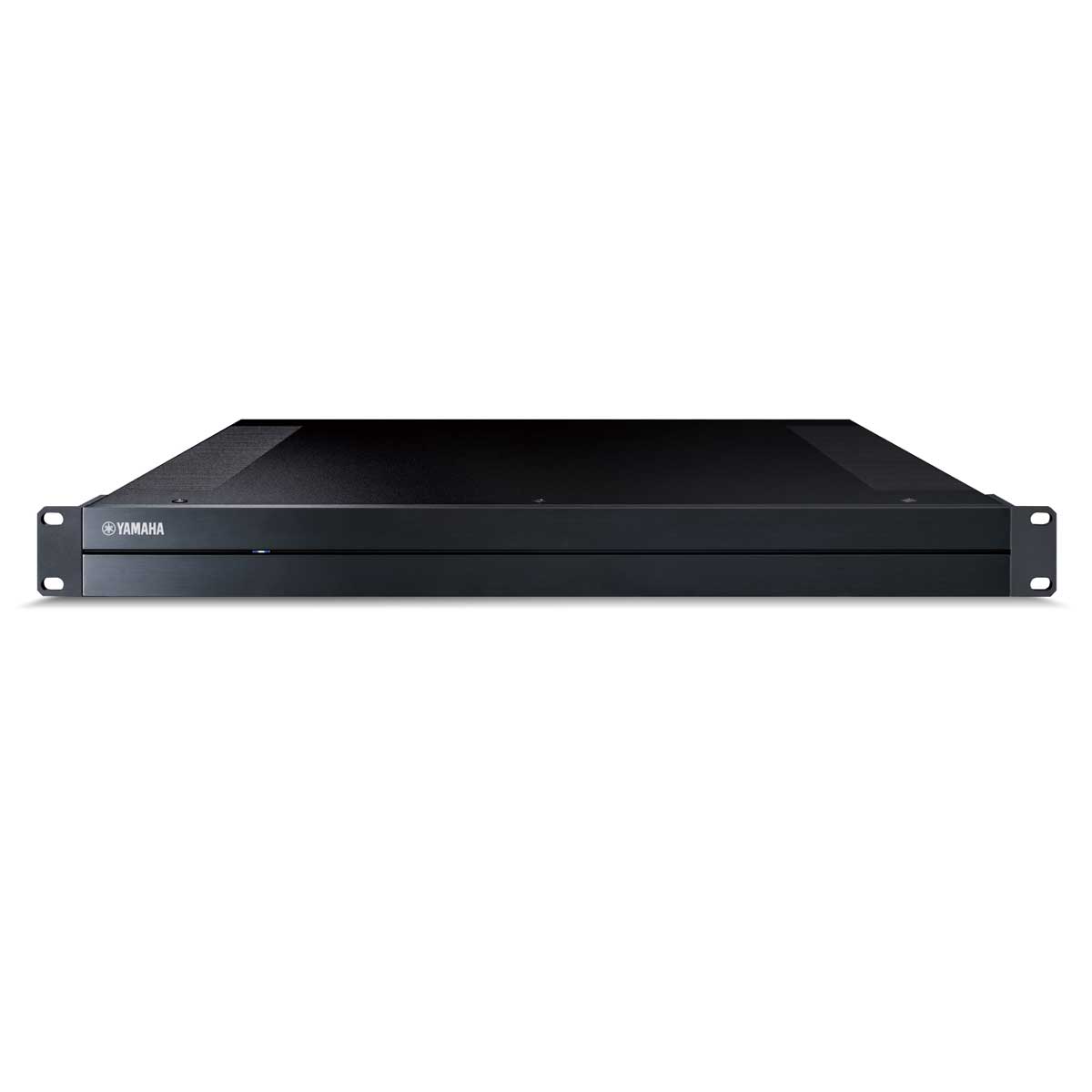

- 1U high, rack-wide enclosure; removable rack ears and faceplate included
Whole Home Audio: Redefined
Ingenious Integration
Designed from the ground up for custom installation, the “QS” represents the ultimate integrated solution for filling every room in a home with extraordinary sound.
Slim Yet Powerful
The QS packs four rooms of audio streaming and eight channels of audiophile-grade amplification into a remarkably slim, 1U-high enclosure, allowing you to fully-optimise your valuable rack real estate.
Expands Easily
Multiple QS units can be used together to expand up to 32 zones with simultaneous playback of linked groups up to 20 zones each. In addition, the QS offers four zone preouts that enable it to be combined with the Yamaha XDA-AMP5400RK, a companion multi-room amplifier, to provide more power or more speaker coverage for large areas in a home. The preouts may also be used to connect powered subwoofers or subwoofer amps.
A Family Like No Other
As a member of the MusicCast family, the QS integrates seamlessly with Yamaha AV receivers, sound bars and more. Now everything – from a surround sound home theatre to a bedroom TV system to in-ceiling speakers in the kitchen – can all work beautifully together.
SPECIFICATIONS
Multi-Room Amplifier
Network SectionFile Format
MP3 / WMA / MPEG-4 AAC, ALAC: up to 96 kHz / 24-bit, WAV / FLAC / AIFF: up to 192 kHz / 24-bit
Ethernet
Yes (2 terminals)
AirPlay
Yes
Audio SpecificationsChannel
8 channel (2 channel x 4)
Minimum Speaker load Capability
4 ohm
BTL Connection
Yes

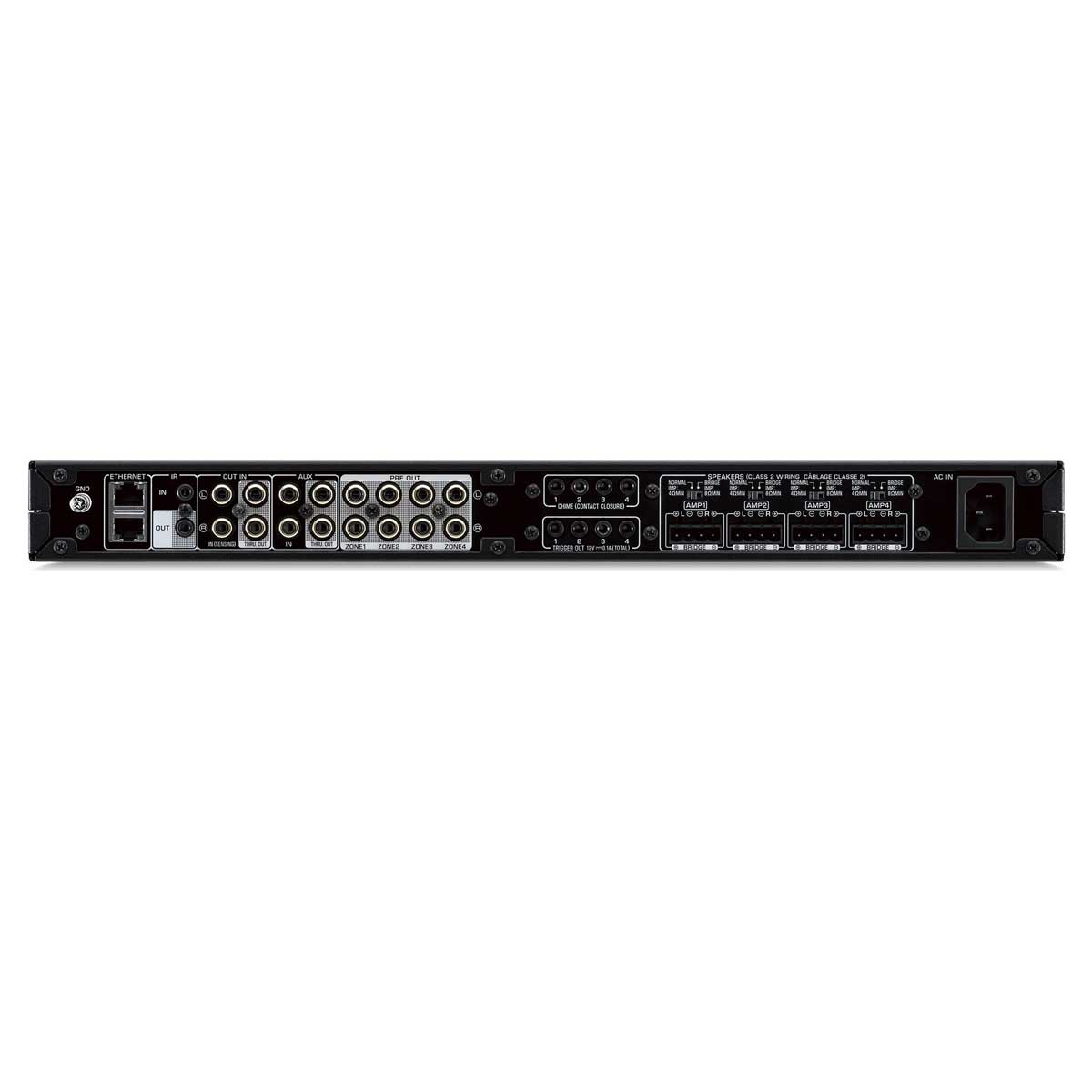

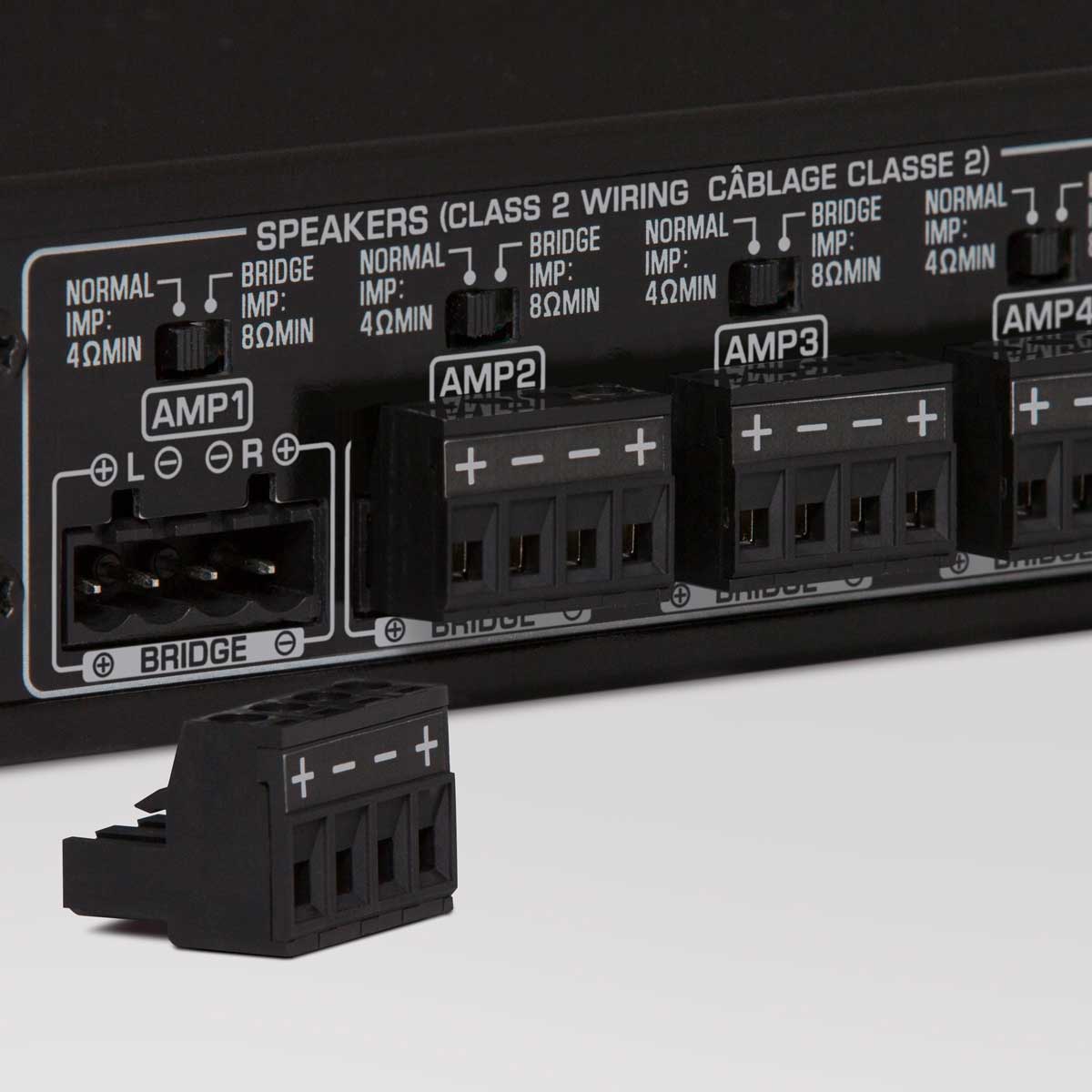

Speaker Output Terminal
4 (Euroblock)
Preout Terminal
4
Audio Input Terminal
RCA: 2 (CUT IN, AUX), USB: 4
Audio Output Terminal
RCA (2-ch through out): 2 (CUT IN, AUX)
Trigger In / Out
0 / 4
Remote In / Out
1 / 1
Chime
4
Rated Output Power (1 kHz, 0.9% THD, 2ch driven)
Normal (4 / 8 ohms): 90 / 50 W, Bridge (8 ohms): 100 W
Rated Output Power (1 kHz, 0.9% THD, 1ch driven)
Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms):200 W
Dynamic Power (20 Hz-20 kHz, 0.08% THD, 2ch driven, 20 ms burst)
Normal (4 / 8 ohms): 80 / 40 W, Bridge (8 ohms): 150 W
Dynamic Power (1 kHz, 0.9% THD, 2ch driven, 20 ms burst)
Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms): 200 W
Dynamic Power (1 kHz, 0.9% THD, All ch driven, 20 ms burst)
Normal (4 / 8 ohms): 80 / 50 W, Bridge (8 ohms):170 W
Maximum Effective Output Power
[1-ch driven, 1 kHz, 10% THD] Normal (4 / 8 ohm): 130 / 65 W, Bridge (8 ohm): 260 W
Total Harmonic Distortion
[SP OUT, 20 Hz-20 kHz, 25 W, 8 ohm] 0.04%, [PRE OUT, 20 Hz-20 kHz, 1 V] 0.005%
Frequency Response
[1 kHz + 0 / -3 dB] PRE OUT NET / USB IN, AUX IN: 10 Hz-22 kHz, SP OUT NET / USB IN, AUX IN: 10 Hz-22 kHz
Signal to Noise Ratio
[PRE OUT NET / USB IN] 114 dB, [PRE OUT AUX IN] 108 dB, [SP OUT NET / USB IN] 106 dB, [SP OUT AUX IN] 104 dB
Rated Output Level / Output Impedance
[PRE OUT L / R, 1 kHz] 2.0 V / 470 ohm
Maximum Output Level
[PRE OUT L / R, 0.9% THD] 4.0 V
Maximum Input Signal
[PRE OUT L / R, 0.9% THD] 2.4 V
Gain
[SP OUT 1 V Input] 25.8 dB
Input Sensitivity
[1 W Power, 8 ohm] 150 mV, [MAX (50W) Power, 8 ohm] 1.0 V

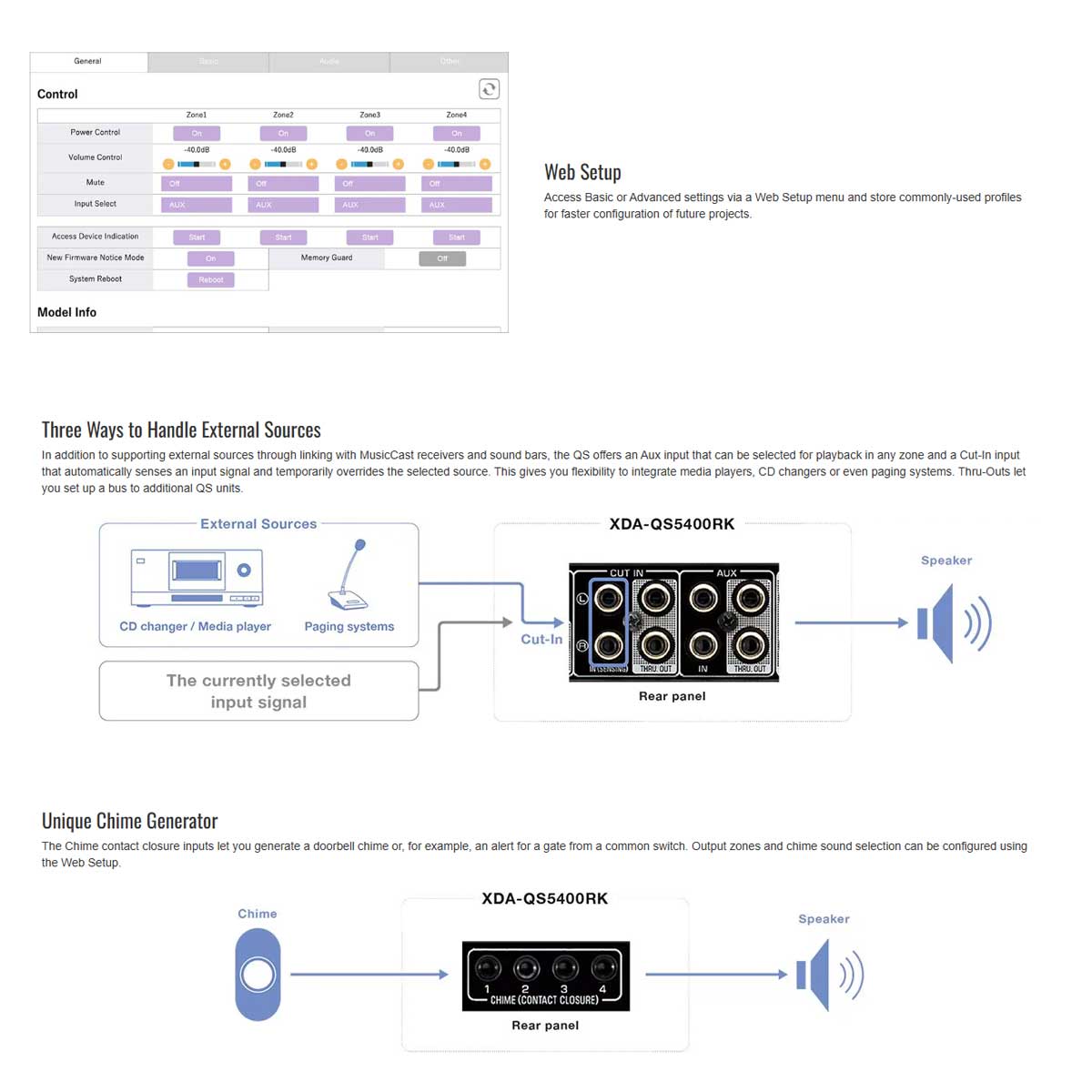

Web Setup
Yes
Direct Mode
Yes
Monaural Downmix
Yes (stereo playback or monaural downmix selectable)
Compressed Music Enhancer
Yes
Volume Adaptive EQ
Yes
Volume Control
Support Terminals: PRE OUT / SP OUT, Range: Mute, -80 dB ~ 0 dB, Step: 0.5 dB
EQ Characteristics
[Bass] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Centre Frequency: 350 Hz, [Mid] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Centre Frequency: 1.1 kHz, [Treble] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Centre Frequency: 3.5 kHz
Bass Extension
Yes
GeneralPower Consumption
130 W, [All Zone On] No Signal Condition: TBD, [All Zone Off] Chime On: 18.2 W, Cut In Power On Enable: 18.2 W
Standby Power Consumption
Network Standby Off: 0.2 W, Network Standby On(1 Zone): 3.2 W, Network Standby On(All Zone): 6.0 W
Power Management (Auto Power Standby)
5 / 20 min, 2 / 4 / 8 / 12 hours selectable
Dimension (W × H × D) mm
[Table Top Mount with Adhesive Feet] 437 x 46 x 443 mm; 17-1/4” x 1-3/4” x 17-3/8”, [Table Top Mount with Adhesive Feet and Faceplate] 437 x 46 x 453 mm; 17-1/4” x 1-3/4” x 17-7/8”, [Rack Mount] 481 x 44 x 443 mm; 18-7/8” x 1-3/4” x 17-3/8”, [Rack Mount with Faceplate] 481 x 44 x 453 mm; 18-7/8” x 1-3/4” x 17-7/8”
Weight
6.3 kg; 13.9 lbs.
